| Water Quality Montoring Station 16665 |
| Link to TCEQ Watershed Data |
| All data from this station, assessment unit, and/or segment can be downloaded from the links below (CSV Format) |
| Click the link with right mouse button and select 'Save Link [target] As' |
| Station Data |
| AU Data |
| Station Description | Water Body | Water Body Type | Watershed | Segment | TCEQ Assessment Unit | Latitude | Longitude | Summer Photo | Winter Photo | Access Database Download Link | USGS Flow Gauge Data |
|---|---|---|---|---|---|---|---|---|---|---|---|

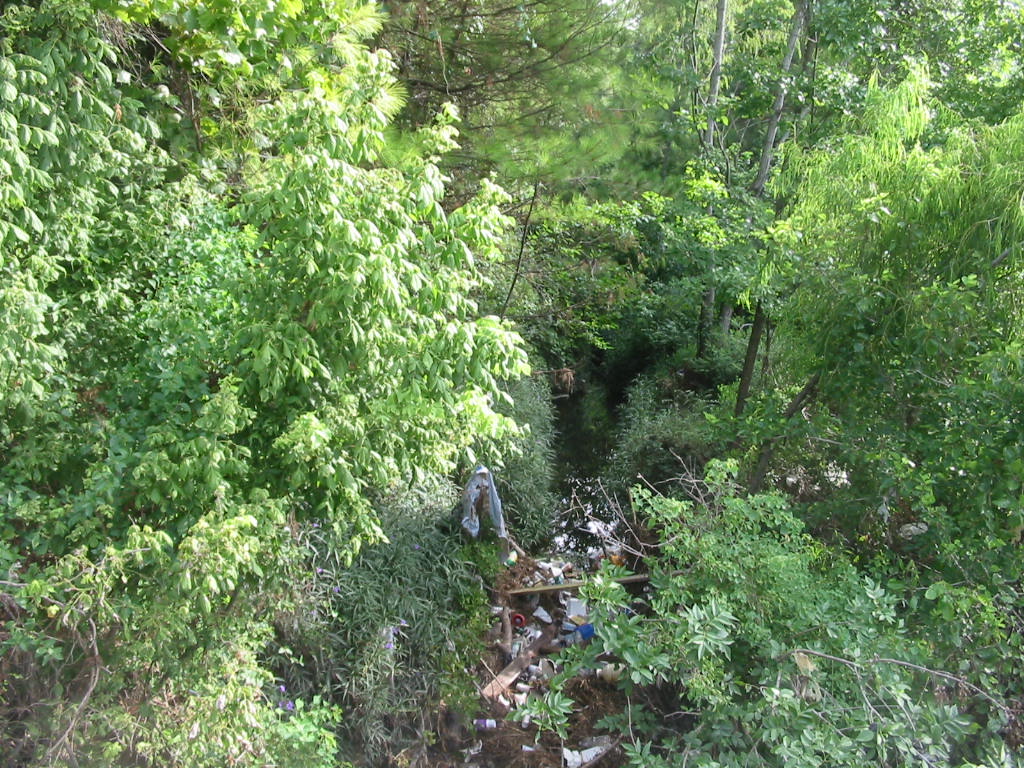

| Unnamed Tributary Of Halls Bayou Immediately Downstream Of Langley Road In North Houston | Unnamed Tributary of Halls Bayou | Unclassified Freshwater Stream | Houston Ship Channel | 1006 | 1006J_01 | 29.86644599000 | -95.32269299000 | Summer Picture | Winter Picture | Data Download Page | No USGS Gauge |
| General Monitoring Information |
| Data Collector | Oldest Sampling Event in TCEQ Database | Most Recent Sampling Event in TCEQ Database | Frequency | Parameter Groups |
|---|---|---|---|---|
| Houston Health Department BPCP | 03/04/1999 | 04/24/2019 | Quarterly | Field, Conventional, Bacteria |
| Watershed Information |
| Watershed | Segment ID | Water Body | Segment Definition | Watershed Description | Water Quality Issues | Watershed Map |
|---|---|---|---|---|---|---|
| Houston Ship Channel | 1006 | Unnamed Tributary of Halls Bayou | From the confluence with the San Jacinto River in Harris County to a point immediately upstream of Greens Bayou in Harris County, including tidal portions of tributaries. Sub-Segment 1006D: Halls Bayou Below US 59 (unclassified water body).From the confluence with Greens Bayou up to US 59 in Harris County. Sub-Segment 1006E: Halls Bayou Above US 59 (unclassified water body).From US 59 upstream to Frick Road. Sub-Segment 1006F: Big Gulch Above Tidal (unclassified water body). From the confluence with Greens Bayou Tidal to Wallisville Road in Harris County. Sub-Segment 1006H: Spring Gully Above Tidal (unclassified water body).From confluence with Greens Bayou to US 90 in Harris County. Sub-Segment 1006I: Unnamed Tributary of Halls Bayou (unclassified water body).From the confluence with Halls Bayou to a point 0.13 miles upstream of Richland Drive in Harris County. Sub-Segment 1006J: Unnamed Tributary of Halls Bayou (unclassified water body).From the confluence of Halls Bayou (east of US 59 and south of Langley | The tidal portion of the Houston Ship Channel is heavily developed. The lower portion of the watershed includes the Cities of Deer Park, Channelview, Houston, Pasadena, and parts of unincorporated Harris County. Heavy industrial complexes line both sides of the channel in the lower part of the watershed. The eastern end of this segment is Carpenters Bayou, which has four tributaries: Tucker Bayou, Patrick Bayou, Boggy Bayou, and Glenmore Ditch. On the south shore of the western end of the watershed is the confluence with Greens Bayou which also received heavy barge traffic. Tributaries to Greens Bayou include: Goodyear Creek, Jordan Gully, Big Gulch, Spring Gully, Halls Bayou, and an unnamed tributary. The Halls Bayou area is predominantly residential and commercial with some light industry. The majority of the area is on sanitary sewer, however there are scattered on-site sewer facilities scattered throughout the watershed. | Of the four uses, aquatic, recreation, fish consumption, and general, for which 1006 (Houston Ship Channel Tidal) is designated none are fully supported. All of the tributaries to 1006 are designated for recreation and all were found to not support the recreation use due to elevated levels of bacteria. E. coli levels exceeded the criteria of 394 MPN 74% of the time (760 out of 1025 samples) and are listed as impaired in both the 2008 and Draft 2010 Texas Integrated Reports (IRs). Enterococci levels were found to exceed the criteria of 500 MPN in three assessment units, 1006_01, 1006_03, and 1006_05. | Watershed Map |
| In general, the discussion of water quality issues applies only to classified portions of the watershed |
| Designated Uses for the Water Body |
| Designated Use | Aquatic Life Use | ALU Designation Source | Fishery Type |
|---|---|---|---|
| Recreation Use | Limited | Presumption from flow type | No Fishery |
| General Use | Limited | Presumption from flow type | No Fishery |
| Aquatic Life Use | Limited | Presumption from flow type | No Fishery |
| Additional information on aquatic life uses for unclassified water bodies can be found in Appendix D of the 2014 TCEQ Water Quality Standards |
| Current Standards (30 TAC Chapter 307) |
| Water Quality Standards and Screening Levels |
| Parameter | Criterion Type | Standard or Screening Level |
|---|---|---|
| Ammonia-N | 2014 TCEQ Screening Level | 0.33 mg/L |
| Chlorophyll a | 2014 TCEQ Screening Level | 14.1 Micrograms / L |
| Dissolved Oxygen (24-hour Mean/ Grab Screening Level) | 2014 Water Quality Standard | 3.0 mg/L |
| Dissolved Oxygen (24-hour Minimum / Grab Minimum) | 2014 Water Quality Standard | 2.0 mg/L |
| Dissolved Oxygen (grab) | 2014 Water Quality Standard | 3.0 mg/L |
| E. Coli | 2014 Water Quality Standard | 126 MPN/100 mL |
| Nitrate+nitrite | 2014 TCEQ Screening Level | 1.95 Mg/L |
| Nitrate-N | 2014 TCEQ Screening Level | 1.95 Mg/L |
| Orthophosphate-P | 2014 TCEQ Screening Level | 0.37 mg/L |
| Total Phosphorus | 2014 TCEQ Screening Level | 0.69 mg/L |
| Source: Chapter 307 of the Texas Administrative Code (6/30/10) and current TCEQ nutrient screening levels (8/25/10) |
| TCEQ does not assess unclassified water bodies against general use criteria (temperature, pH, total dissolved solids, chloride, and sulfate); These criteria are included for reference only |
| EPA-Approved Texas Water Quality Standards |
| TCEQ Water Quality Standards Information |
| Description of Water Quality Parameters |
| Summary of Water Quality Impairments and Concerns |
| Station ID | Bacteria Impairment | Low Dissolved Oxygen | Nutrient Screening Levels Exceeded for One or More Nutrients | PCB Dioxin Impairment |
Impaired Macrobenthic Community | Impaired Fish Community | Habitat Impairment | Mercury Impairment | Sediment Toxicity | Shellfish Harvesting Restrictions | DSHS Fish Shellfish Consumption Advisories |
Bioaccumlative Toxics in Water |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 16665 | X | C |
| Source: TCEQ 2016 Integrated Report |
| Impairments are identified by an 'X' |
| Water quality impairments and concerns apply only to the assessment unit in which this station is located |
| TCEQ Integrated Report |
| Texas Department of State Health Services Fish and Shellfish Advisories |
| Texas Parks and Wildlife Fish Consumption Advisories |
| Water Quality Assessment Details |
| Assessment Unit | Assessed Use | Impairment or Concern | Assessed Parameter | Integrated Support Code | Impairment Category | Integrated Support Code | Impairment or Concern Details | Dataset Qualifier | Number of Samples Assessed | Number of Samples Exceeding Standard or Screening Level | Geometric Mean or Average | Assessment Start Date | Assessment End Date |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1006J_01 | Recreation Use | Bacteria Geomean | E. coli | NS | 4a | NS | TMDL completed and approved by EPA | Adequate Data (10 or More Samples) | 62 | 1 | 479.6936 | 01DEC2007 | 30NOV2014 |
| 1006J_01 | Aquatic Life Use | Dissolved Oxygen grab minimum | Dissolved Oxygen Grab | FS | FS | Adequate Data (10 or More Samples) | 62 | 4 | . | 01DEC2007 | 30NOV2014 | ||
| 1006J_01 | Aquatic Life Use | Dissolved Oxygen grab screening level | Dissolved Oxygen Grab | CS | CS | Screening Level Concern | Adequate Data (10 or More Samples) | 62 | 13 | . | 01DEC2007 | 30NOV2014 | |
| 1006J_01 | General Use | Nutrient Screening Levels | Ammonia | NC | NC | Adequate Data (10 or More Samples) | 62 | 13 | . | 01DEC2007 | 30NOV2014 | ||
| 1006J_01 | General Use | Nutrient Screening Levels | Nitrate | NC | NC | Adequate Data (10 or More Samples) | 62 | 1 | . | 01DEC2007 | 30NOV2014 | ||
| 1006J_01 | General Use | Nutrient Screening Levels | Total Phosphorus | NC | NC | Adequate Data (10 or More Samples) | 62 | 10 | . | 01DEC2007 | 30NOV2014 |
| Source: TCEQ 2016 Integrated Report |
| Impairments are identified by an 'X' |
| Water quality impairments and concerns apply only to the assessment unit in which this station is located |
| TCEQ Integrated Report |
| Texas Department of State Health Services Fish and Shellfish Advisories |
| Texas Parks and Wildlife Fish Consumption Advisories |
| Summary of Data Collected in the Past Seven Years |
| Graphs of Possible Trends from Correlation Analysis may be found at the link below |
| Statistically Signficant 7-YearTrends- Time Series Graph |
| Description of Water Quality Parameters |
| Parameter | Units | Start Date | End Date | Number of Samples | Standard or Screening Level Exceedances | Percent Exceedance | Minimum Value | Maximum Value | Mean Value | Median Value | Geometric Mean | Standard Deviation | 90th Percentile | P-Value | Time Correlation | Possible Trends |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ammonia-N | mg/L | 05/10/2012 | 04/24/2019 | 63 | 3 | 4.8 | 0.05 | 1.04 | 0.14 | 0.10 | . | 0.15 | 0.29 | 0.02749 | -.278 | Possible Improvement |
| Chloride | mg/L | 05/10/2012 | 04/24/2019 | 63 | . | . | 10 | 363 | 53.3 | 50 | . | 45.2 | 81 | 0.04673 | 0.252 | Possible Deterioration |
| Dissolved Oxygen (grab) | mg/L | 05/10/2012 | 04/24/2019 | 62 | 12 | 9.7 | 1.70 | 11.50 | 5.32 | 4.75 | . | 2.12 | 8.50 | . | . | |
| E. Coli | MPN / 100 mL | 05/10/2012 | 04/24/2019 | 63 | 56 | 88.9 | 52 | 36000 | 3938 | 460 | 779 | 7872 | 12000 | . | . | |
| Enterococci | MPN / 100 mL | 07/30/2012 | 07/19/2017 | 21 | . | . | 41 | 24000 | 2866 | 290 | 462 | 7081 | 3900 | . | . | |
| Nitrate-N | mg/L | 05/10/2012 | 04/24/2019 | 63 | 0 | 0.0 | 0.01 | 1.04 | 0.29 | 0.25 | . | 0.18 | 0.47 | . | . | |
| Salinity | mg/L | 06/17/2014 | 11/18/2014 | 5 | . | . | 1.00 | 1.00 | 1.00 | 1.00 | . | 0.00 | 1.00 | . | . | |
| Secchi Transparency | Meters | 05/10/2012 | 04/24/2019 | 62 | . | . | 0.15 | 1.20 | 0.78 | 0.80 | . | 0.32 | 1.20 | . | . | |
| Specific Conductance | Microsiemens / cm | 05/10/2012 | 04/24/2019 | 63 | . | . | 218 | 1710 | 597 | 628 | . | 227 | 800 | 0.00204 | 0.381 | Possible Deterioration |
| Sulfate | mg/L | 05/10/2012 | 04/24/2019 | 63 | . | . | 7 | 51 | 20.7 | 20 | . | 10.7 | 36 | 0.01321 | 0.311 | Possible Deterioration |
| Temperature | Degrees C | 05/10/2012 | 04/24/2019 | 63 | . | . | 9.6 | 28.6 | 20.5 | 20.5 | . | 6.3 | 27.9 | . | . | |
| Total Kjeldahl Nitrogen | mg/L | 07/30/2012 | 07/19/2017 | 22 | . | . | 0.80 | 4.50 | 1.47 | 1.15 | . | 0.93 | 3.10 | 0.02145 | -.487 | Possible Improvement |
| Total Phosphorus | mg/L | 05/10/2012 | 04/24/2019 | 63 | 3 | 4.8 | 0.11 | 1.33 | 0.41 | 0.37 | . | 0.19 | 0.59 | . | . | |
| Total Suspended Solids | mg/L | 05/10/2012 | 04/24/2019 | 63 | . | . | 2 | 47 | 8 | 5 | . | 9.9 | 20 | . | . | |
| pH | Standard Units | 05/10/2012 | 04/24/2019 | 63 | . | . | 7.2 | 7.8 | 7.6 | 7.6 | . | 0.16 | 7.8 | . | . |
| Statistics in this table apply to the time period selected by H-GAC for analysis; additional data is available in the TCEQ Surface Water Monitoring Information System database |
| P-value and time correlation derived from nonparametric correlation analysis of concentration and collection date; trends identified have not been confirmed by other methods and should not be considered definitive |
| Exceedance statistics reflect samples that exceed single-sample or geometric mean criteria published in Chapter 307 of the Texas Administrative Code (6/30/10), or TCEQ nutrient screening levels |
| Nutrient data (chlorophyll a, nitrate nitrogen, total phosphorus, ammonia nitrogen, and orthophosphate phosphorus) are not collected at all stations |
| A time correlation of 'M' indicates that all sample values were identical; regresssion statistics are not valid |
| Channel and Habitat Characteristics- H-GAC Watershed Characterizations and Special Projects |
| TCEQ Station Watershed Data |
| General Channel Description | Left Bank Characteristics | Right Bank Characteristics |
|---|---|---|
| Type: Natural, Concrete Present At Bridge ; Buffer: Extensive ; Surrounding land use: Residential - 50%, Light Industry - 50% ; Width: Approx. 8 Ft ; Surrounding land use: Residential - 50%, Light Industry - 50%Buffer Zone: Extensive ; Treatment plant outfalls: None Present ; Outfall distance: ; Storm drains: Present ; Storm drain distance: L - 5 Ft, 23 Ft, R - 5 Ft | Description: Natural Vegetation - 80%, Bare Soil - 10%, Rip Rap - 5%, Concrete - 5% ; Riparian Vegetation: Tall Grass - 25%, Shrubs - 25%, Young Trees - 25%, Fully Developed Trees - 25% , Overhanging ; Density: ModerateBank stability: Moderately Stable | Description: Natural Vegetation - 80%, Bare Soil - 10%, Rip Rap - 5%, Concrete - 5% ; Riparian Vegetation: Tall Grass - 25%, Shrubs - 25%, Young Trees - 25%, Fully Developed Trees - 25% , Overhanging ; Density: ModerateBank stability: Moderately Stable |
| This information may not reflect present channel and habitat conditions, and is presented for general reference only |
| Most Recent Sampling Event in SWQMIS |
| Station_ID | Sample Depth | Sample Date | Time | Collector | Parameter | Parameter Code |
GTLT | Value | Units | Standard / Screening level |
|---|---|---|---|---|---|---|---|---|---|---|
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Ammonia-N | 00610 | < | 0.1 | Mg / L | 0.33 mg/L |
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Chloride | 00940 | 57 | Mg / L | ||
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Days Since Last Rain | 72053 | 6 | Mg / L | ||
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Dissolved Oxygen (grab) | 00300 | 5.2 | Mg / L | 3.0 mg/L | |
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | E. Coli | 31699 | 140 | MPN / 100 mL | 126 MPN/100 mL | |
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Flow Severity | 01351 | 3 | Mg / L | ||
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Nitrate-N | 00620 | 0.44 | Mg / L | 1.95 Mg/L | |
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Secchi Transparency | 00078 | 0.76 | Meters | ||
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Specific Conductance | 00094 | 753 | Microsiemens / cm | ||
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Sulfate | 00945 | 24 | Mg / L | ||
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Temperature | 00010 | 21 | Degrees C | ||
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Total Phosphorus | 00665 | 0.21 | Mg / L | 0.69 mg/L | |
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | Total Suspended Solids | 00530 | 8 | Mg / L | ||
| 16665 | 0.3 | 04/24/2019 | 10:35 | Houston Health Department BPCP | pH | 00400 | 7.4 | Standard Units |
